Fresh Aero Aviation - LED Lighting and tools for homebuilt & Sport (LSA) and general aviation aircraft
Fresh Aero Aviation manufactures and markets high quality innovative products for the homebuilt and general aviation community. We also manufacture and market specific products for Van's RV, Sonex and Grumman AA1 & AA5 Series aircraft.
|
If you fly your Grumman AA Series aircraft at night, you know that the original instrument panel lighting leaves a lot to be desired. The Fresh Aero EasyFuel Gauge Light is one of our latest Grumman lighting inovatons the perfect way to really light up your AA-5 fuel gauges and everything else on your center console.
Just remove two screws above your fuel gauges and use these screws to mount the EasyFuel Light above the gauges. original eye brow incandescent light bulbs and mount the Fresh Aero EasyBrow LED Light to your lower eye brow panel – in less than an hour.
The EasyBrow light is above yourlights up your Grumman panel like it's never been lit before. The EasyBrow Lights consist of a 31 inch, 48 LED light bar only 2mm thick (about 3/32") and they use the same plug-in bayonet connectors we use on our Easy Light overhead lighting unit. And even with 48 LEDs, the EasyBrow uses only about half the power of the three original incandescent bulbs! The EasyBrow Lights install easily on the outside and underside of the lower Grumman eye brow (where the existing red lens eye brow lights are mounted) with the attached 3M tape and plug into two of the existing incandescent eye brow sockets inside the brow. Other Features Include ---
State of the art LED solid state lighting in blue, red & green and they weigh less than 1 ounce (1.5 oz. with the protective covering)
Great redundancy! Even if your gauge bulbs burn out, you'll still have the EasyFuel Light.
Almost completely hidden. Does not obstrut an instrumentation or controls.

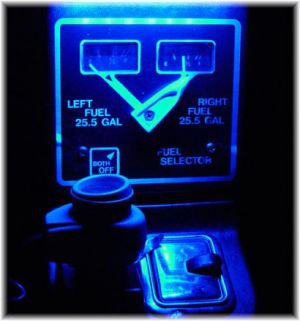

Illuminates entire instrument center console with bright and clean light. No halos, hot spots or weak spots – just beautiful even light. The EasyFuel Light accentuates the needles and indices on your fuel gauges so you won't need to strain to see them.
Very long life cycle. The LEDs on the EasyBrow Light have a life span of at least approximately 80,000 hours!
Many times brighter than the original Grumman panel lighting and about half the power consumption
Unlike the original eye brow panel lights, the EasyBrow lights run extremely cool with no heat build-up.
All components have a UL flame retardant rating of at least HB 94
They are fully controllable using the existing panel rheostat -- from dim to full bright.
Simple installation. Just remove the existing eye brow incandescent bulbs, mount the light strip on the lower eye brow panel with the attached 3M tape and plug in the adaptors into the bulb sockets .
These lights bath your panel in beautiful light and will not diminish night vision.
Vibration proof design. Aircraft vibration will not be a factor. |
 |
The EasyBrow light does not require An
faa "337" field approval in most faa districts The EasyBrow Light requires just a logbook entry by an A&P mechanic in most FAA districts in the U.S. The EasyBrow light is considered to be just a bulb replacement to most FAA District offices. Please call us for more information.  Download
the Grumman AA-5 EasyFuel Gauge Light Manual in PDF Format
These lights just attach with existing screws to your center consolel, just above your fuel gauges and light this area like it's never been lit before.  |
 |
||
 |
||
 |
EasyFuel Gauge Light for Grumman AA-5 Series Aircraft -- $37.50
E-mail: info@steelebrook.com
