Fresh Aero Aviation manufactures and markets high quality innovative products for the homebuilt and general aviation community. We also manufacture and market specific products for Van's RV, Sonex and Grumman AA1 & AA5 Series aircraft.
|
If you’ve ever inflated aircraft tires, especially tires with wheel pants, you know that this seemingly simple task can be quite a handful.

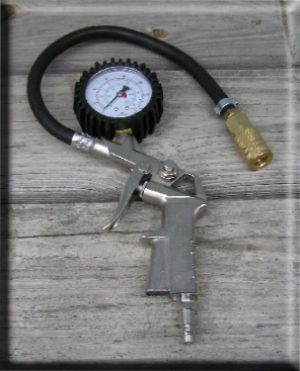

There is a better and easier way to perform this task -- use the Fresh Aero One Op (One Operation) Aviation Tire Inflating System.
Have you struggled with squeezing the inflator chuck between the wheel pant and tire fill stem? The OneOp inflating system can be purchased with an angled locking chuck that will slip in small openings easily and lock onto the tire stem. There is no need to hold pressure on the chuck when filling the tires.
Have you lost pressure when you switched between the air chuck and the pressure gauge? This will not happen with the One Op Inflating system because the pressure gauge is integrated into the unit. Just hold the inflator valve lever until the proper pressure appears, then release and remove the chuck from the tire stem. That’s it!
The Fresh Aero One Op Inflator is offered in two models; The RC, for reservoir (tank) type air compressors and the PC, for portable tank-less compressors and is configured with industry standard disconnects for easy attachment to your air supply line and air chuck fittings.
Additional Features Include ---
The OneOp includes a large shock protected pressure gauge with large, easy to read pressure indices and a female quick disconnect for coupling the correct air chuck for your application.
Five interchangeable tire chucks with male quick dis-connects are available for easy access for both nose and main tires. Just order the chuck(s) you need for your aircraft. (see the right column)
The OneOp can also be used to quickly and easily deflate tires when wheel maintenance is required.
An optional in-line regulator is also available that reduces high air pressure from reservoir (tank type) compressors to a safe pressure.
|
 |
 Download
the
Fresh Aero OneOp Tire Inflating System Manual in PDF Format
RC Model for Reservoir Compressors Download
the
Fresh Aero OneOp Tire Inflating System Manual in PDF Format
PC Model for Portable (tankless) Compressors
Air Chuck Descriptions
The following provides a description of the air chucks we offer for the OneOp Tire Inflator. Just choose the number(s) you need and add them to your shopping cart. You'll find them in the "Aero Tools" category.
You can also
purchase these chucks separately to use on other inflating
devices. They are equipped with standard industrial male
quick disconnects.
Chuck # 2 ..... This is the standard two-way angled chuck. The chuck is 7 1/4 inches (185mm) long and the angles are 30 & 60 degrees. Chuck # 3 ..... This is our extended 6 3/4 inch (172mm) straight chuck. This chuck is similar to our standard straight chuck except for its longer length. It is very useful for those hard to reach tire stems with small access holes in fairings. Chuck # 4 ..... This is our standard 4 1/4 inch (108mm) long straight chuck. Due to the very narrow tip, this chuck only needs a 9/16 inch (14mm) access hole to pass though. Chuck # 5 ..... This is our 30 degree, 4 1/8 inches (114mm) long angled locking chuck. The lever is used to lock the chuck onto the tire stem. This chuck is really handy for filling those tires covered with wheel fairings.
So there you have it. Just order what
you need. |
 |
||
 |
||
|
note: the one op inflator does not
include the tire chucks as different applications require
specific chucks. please order the air chuck(s) you need from the shopping cart in the Aero tools category. contact us if you need help selecting the correct air chuck. |
RC Model for Reservoir Compressors (does not include air chucks) -- $16.90
PC Model for Portable Compressors (does not include air chucks) -- $26.90
